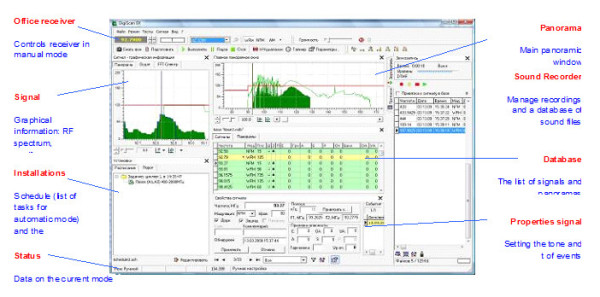

NaviScan EX

New generation of the anti-bug sweeping software

NaviScan EX reveals all the possibilities of your receiver and allows you to perform sweeping procedure at a professional level

Editions of the software (NaviScan EX Professional is included in The Stealth Navigator Pro)

NaviScan EX Professional	Solving both searching and monitoring tasks on a professional level
NaviScan EX S-Pro	Solving both searching and monitoring tasks on a professional level plus energetic correlation

Feature	NaviScan EX Professional	NaviScan EX S-Pro
Scheduler	+		+
Watchdog timer	+		+
Kinds of executed tasks
‘Search’ task: searching for listening devices in a specified frequency range, performing tests to estimate a signal’s danger level, saving signals in the database (DB) and automatic sound recording on a signal’s frequency	+		+
Task ‘Analysis’: testing signals in the DB in order to measure their danger level, automatic recording of sound from dangerous signals	+		+
Task ‘Scan range’: scanning of a specified frequency range with operator-determined step and modulation, saving signals in the DB. Programmable conditions of continuation and automatic recording of sound	+		+
Task ‘Scan DB’: scanning signals of the DB for their activity, programmable conditions of continuation and automatic recording of sound	+		+
Task ‘Frequency watch’: watching a frequency for activity, programmable conditions of continuation and automatic recording of sound	+		+
Search features
Comparison od signals on external and internal antenna (energetic correlation)			+
Classification of the signals by danger level	+		+
Collecting and working with friendly signals to increase speed	+		+
Using a reference bandscope as a threshold to increase speed	+		+
Silent search in passive modes	+		+
Checking wires for the presence of acoustics in the very low frequency range of 5KHz…2MHz: AC 220V, phone lines, alarms. Checking of the infra-red range is also possible (optional probe is required)	+		+
Passive amplitude correlation	+		+
Semi-passive amplitude correlation	+		+
Active amplitude correlation	+		+
Active spectrum correlation	+		+
Active parametrical correlation	+		+
Harmonic presence test	+		+
Automatic recording of sound from dangerous signals	+		+
Automatic printing of dangerous signals	+		+
Notification to the operator about danger detection	+		+
Estimation of the bug’s location in 2 dimensions and printout of the results	+		+
Monitoring features
Programmable conditions of the scan suspension and resumption	+		+
Using a reference bandscope as a threshold to increase the scan speed	+		+
Sound recording
Sound archive stores the frequency, modulation, date/time, duration and DTMF. Automatically erases older sound files when the allowed occupied space is exceeded. Export of sound files is possible.	+		+
Bit rate selection (9kHz, 16kHz, 22kHz, 44kHz)	+		+
Compression of sound with the help of the following codecs: MP3, ADPCM, GSM, etc. The minimum disk space required for 1 hour is 8Mb (80 Mb without compression).	+		+
Recognition of the DTMF	+		+
Activation by voice with tunable sensitivity and interval	+		+
Database
Microsoft Access .mdb format	+		+
Export of signals to Microsoft Excel or a text file	+		+
Printout of signals and their spectrums	+		+
Support of banks and filtering by bank	+		+
Selection of the working style: “Search”, “Monitoring”, “Expert”	+		+

Optional accessory Package

1. Navi-Line 2 Pro – very-low frequency converter for checking wires (AC 220V, telephone wires, alarm wires)

2. ANT-LINE – antenna for moving away from the laptop computer in order to avoid interferences

3. IR-LINE – probe for checking the infra-red range (search of bugging devices transmitting information with the help of the IR beams). Connection to the DS-LINE.

4. MLP-LINE – probe for checking the electromagnetic range (checking items for presence of internal electronics)

5. DS-RM – external reference microphone with a 10m cable. Can be used for checking remote premises. Please note that a built-in reference microphone is already supplied with the system.

6. Carrying case with an increased reliability
