The Stealth IPCam

Global TSCM Group provides the Stealth IPCam Series which are the most advanced professional bi-communication video surveillance and remote monitoring solutions. All of the Stealth IPCam Series  can be controlled and managed via intranet and internet even controlled and monitored by a mobile phone. The Stealth IPCam alows upto 40 viewers same time.

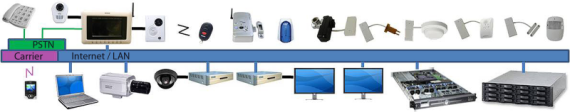

The Network World of the Stealth IPCam Series



1) SS-3838 - Low Cost, Very Small Network A/V Server Board


The SS-3838 is an extremely small (38mm x 38mm) and high performance MPEG4/JPEG network A/V server board enabling camera vendors to easily manufacture various types of network cameras using the existing analog cameras such as a box camera and/or a dome camera.

- Very Small : the World's smallest : 38mm x 38mm x 16mm



- Built-in De-Interlace Filter



- Dramatically eases design of network cameras



- Completely self-contained



- OEM/ODM Available




See Detail



2) SS-152 - 1 Channel MPEG4 Network A/V Server



Features


* Triple Compression (MPEG4 encoder 2ea, JPEG encoder 1ea)

    : Independent resolution, frame rate and bit rate video compression
 (30fps @ NTSC, 25fps @ PAL)
* Triple Streaming (MPEG4 stream 2ea, JPEG stream 1ea) :
   - Independent resolution, frame rate and bit rate video streaming
* 4 Resolution Selectable : D1, Half D1, 2CIF, CIF
* CBR/VBR selectable (CBR : 100kbps ~ 5Mbps / VBR : low, normal, high)
* Full duplex voice communcation : G.723 (ADPCM), microphone input, speaker output
* Various softwares for PC, PDA and mobile phone
* 50 Concurrent Access
* Event based automatic or manual control of relay output (open / short control)
* Encryption of ID, password, video and data
* Alarm by e-mail & SMS in case of event (video loss, motion and sensor triggering)
* Pre-alarm and Post-alarm video recording in the PIMA server in case of event
 (motion and sensor triggering)
* Intelligent motion detection and alarm triggering
* DDNS and all IP addresses (Global, Private, Dynamic and Static IP address) supported
* Multi-level user ID & password
* Encryption of user ID/password, video, audio, data
* Remote configuration and status using web-based tool
* Firmware upgradable for future proof
* User web page uploadable into the network A/V server
* RS-485/RS-232 based Pan/Tilt/Zoom/Focus/Preset control
* IPv4 / IPv6 support




See Detail





3. PIMA Server



1) What is the PIMA Server ?
The PIMA (Phone, Internet, Mobile, Analog) server has been developed so that any devices can get connected together with its help. Many kinds of products can be connected together and communicate each other because of the PIMA server. Convergence of products are realized.The PIMA server consists of the following major servers.



- Management Server



- IP Server



- Alarm Server



- Mobile Server



 - Relay Server (Broadcasting Server)



- Contents Server (Photo & Movie Server)





 See Detail





  • 4. Solution

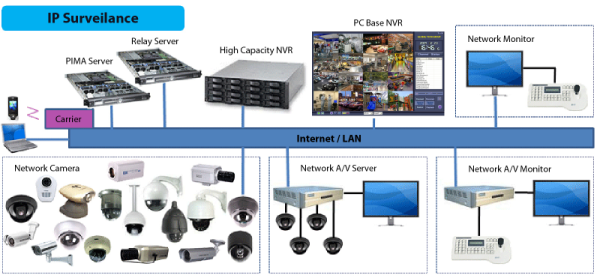

1) Flexible and scalable solutions for professional video surveillance and remote monitoring
Global TSCM Group provides a full range of network video solutions for a broad spectrum of industry segments and applications, as well as specific solutions for specific situations. For example, for CCTV users faced with the technology shift from their existing analog systems to network video, Global TSCM Group offers solutions for migrating and for expanding seamlessly. We make deployment easy in all types of environments: indoor, outdoor, wired, wireless, and in rough, tough conditions.



2) Open standards only - for full integration and video management capabilities
Global TSCM Group network video solutions are based on our own open, standard-setting API (application programming interface). This makes Global TSCM Group network video solutions cost-efficient, flexible, scalable, future-proof and easy to integrate with other systems, such as access control and building management systems.



3) Unlimited, Various Solutions
Global TSCM Group has the following solutions which have been used successfully by our customers and can be expanded by our creativity and imagination.



4) Software for PCs, PDAs and Mobile Phones

  • PC based NVR
  • PC A/V Communicator
  • PDA A/V Communicator
  • Mobile Phone Viewer
  • SDK/API/DLL for Windows
  • SDK/API/DLL for Linux





See Detail
